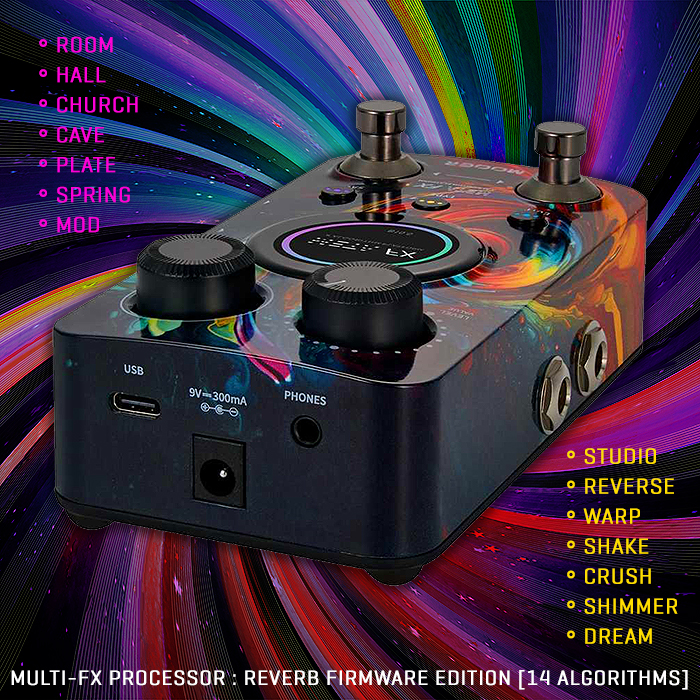

Mooer's Meta FX Pedal delivers the ultimate compact genre stereo workstation experience with 3 independent firmware releases - Reverb, Delay, and Modulation, and an extended parameters touch-screen

Digital ReverbMooerMulti-FXReverbReverb Workstation+-
Share to TwitterShare to Facebook

Key Points

Mooer’s Meta FX is a stereo workstation, demonstrated by Mike Hermans and Andertons, based on the 14-algorithm R7 X2 Reverb: Room, Hall, Church, Cave, Plate, Spring, Mod, Studio, Reverse, Warp, Shake, Crush, Shimmer and Dream. Its touchscreen expands control to Level, Decay, PreD, HCut and modulation parameters.


Three swappable firmware families—Reverb, Delay and Modulation—use Mooer Studio for Mac and Windows; only one loads at a time. Features include Infinite Mode, 100 presets, USB/TRS-MIDI, stereo I/O, headphone output and USB-C.


The 125×74×49mm, 230g pedal has a 1.28-inch touchscreen and costs £149 RRP in the UK.

So this edition, as demo’d by Mike Hermans - is in effect a massive upgrade on the 14 Mode Mooer R7 X2 Reverb which I have and love, with the same 14 Algorithms being :

  • Room  Hall | Church | Cave | Plate | Spring | Mod | Studio | Reverse | Warp | Shake | Crush | Shimmer | Dream

Obviously for the R7 X2 you have limited onboard controls, while on the Meta FX you can not only access Level, and 3 Quick Access Params - Decay, PreD, and HCut, but you can tap the screen to access the full range of parameters, including ones like :

  • Mod Rate | Mod Depth | Mod Level

You need to get used to using the left knob to set levels and param values - you tap, scroll, and then tap on the appropriate param level bar on the screen - and then apply the level knob - rinse and repeat!



For the quick-access controls you press-hold one of the 3 small buttons and ajust the Level at the same time for Decay, Pre-Delay, and Hi-Cut.



It all looks pretty intuitive in Mike Hermans’ below demo.



Mike Hermans and Andertons are pretty much ahead of the game here - as the only ones featuring the pedal so far. All you have on Mooer is the Meta FX Mac and Windows App Downloads. No product reference yet, and no manual - so my only analysis has to be extrapolated from the Mike Hermans and Andertons details - along with my experience of the R7 X2.



If you liked the R7 X2, then this is a prettier and more expansive / more refined version of that really - where you can also download Delay Workstation or Modulation Workstation Firmware - only one can be loaded / deployed at a time - so I might eventually buy a 3 of those pedals - one for each Genre type. The other 2 Firmware downloads are based on the X2 D7 Delay, and I guess evolved in part from the Mooer Mod Factory. There weirdly isn’t a M7 X2, but there are several Modulation Algos on Mooer’s various Multi-FX Pedals - including the Mooer Prime M2. I must say I much prefer the control interface on this Meta FX!



It looks like the Reverb Firmware is the first out the door, details on the other two are still scant - while we pretty much know what’s likely in the Delay Firmware release.



There is a lot of mention that there are supposed to be 40 Algorithms per Genre / Effect Family, while I haven’t seen proper evidence of that yet - as Mike Hermans just refers to the same 14 Algos that are on the R7 X2 :



Regular Algorithms :

  • Room | Hall | Church | Cave | Plate | Spring | Mod



More Specialist Algorithms :

  • Studio | Reverse | Warp | Shake | Crush | Shimmer | Dream

Key Features

  • 3 x Swappable Firmware Families : Switch between three distinct effect categories (Reverb, Delay, or Mod) using the desktop application
  • Deep Algorithmic Library : Over 40 premium stereo algorithms are available per firmware family (e.g., 14 premium types in the Reverb firmware)
  • Infinite Mode : Reverb tails can be extended indefinitely for lush, ambient soundscapes
  • Hybrid Interface : Combines a 1.28-inch round colour LCD touchscreen with four hardware parameter control knobs
  • Preset Storage : 100 dedicated user preset locations
  • Software Integration : Presets, backups, and firmware swaps are handled via Mooer Studio software for Mac and Windows

Technical Specs

  • Display : 1.28-inch capacitive round touchscreen with a halo LED indicator
  • Footswitches : 2 multi-function footswitches supporting preset switching and tap tempo
  • Audio Inputs : Dual 6.35 mm TRS stereo inputs
  • Audio Outputs : Dual 6.35 mm TRS stereo outputs
  • Headphone Jack : 3.5 mm output with an independent volume level control
  • USB Interface : USB-C for MIDI control, software management, and power
  • MIDI Connectivity : Supported over both USB-MIDI and TRS-MIDI
  • Power Requirements : 9V DC [-] 300mA standard input or alternative power via USB-C
  • Dimensions : 125 mm x 74 mm x 49 mm
  • Weight : c.230g
  • RRP : £149 in the UK, no other prices listed yet

Demos

Stefan Karlsson
Posted by Stefan Karlsson
